Overhauling my Ceph cluster

Sat 10 May 2025

I decided to optimize and secure my network setup at home. As part of this new configuration, I decided to put my Ceph cluster into a separate network and use a VLAN. After reading the official documentation on that topic, I learned that I am starting some bigger endeavour here. According to the documentation, existing Ceph monitors are not supposed to change their IP addresses. 😀 Nonetheless, I gave that a shot and screwed up my Ceph clusters configuration eventually. Not to a point where I could not fix it, but at some point I choose to reinstall it because that seemed less work.

Also, I was not fully satisfied with the hardware setup of my devices: I was running the operating system for the Raspberry Pis on SD cards. When I put this together, this was a cheap and convenient option. This worked fine for roughly six months since I initially put that together. But that was not a speedy option for storing the monitor's map on the devices. Also, I am worried about the wear and tear on the SD Cards. So I choose to also improve the hardware setup and rip apart my Ceph cluster completely.

Hardware Improvements

I choose to go for another NVMe SSD for the Raspberry Pis main system storage. Therefore, I had to swap out the existing NVMe HAT I currently use for the devices as it just supports a single NVME SSD. So I ended up with this part list:

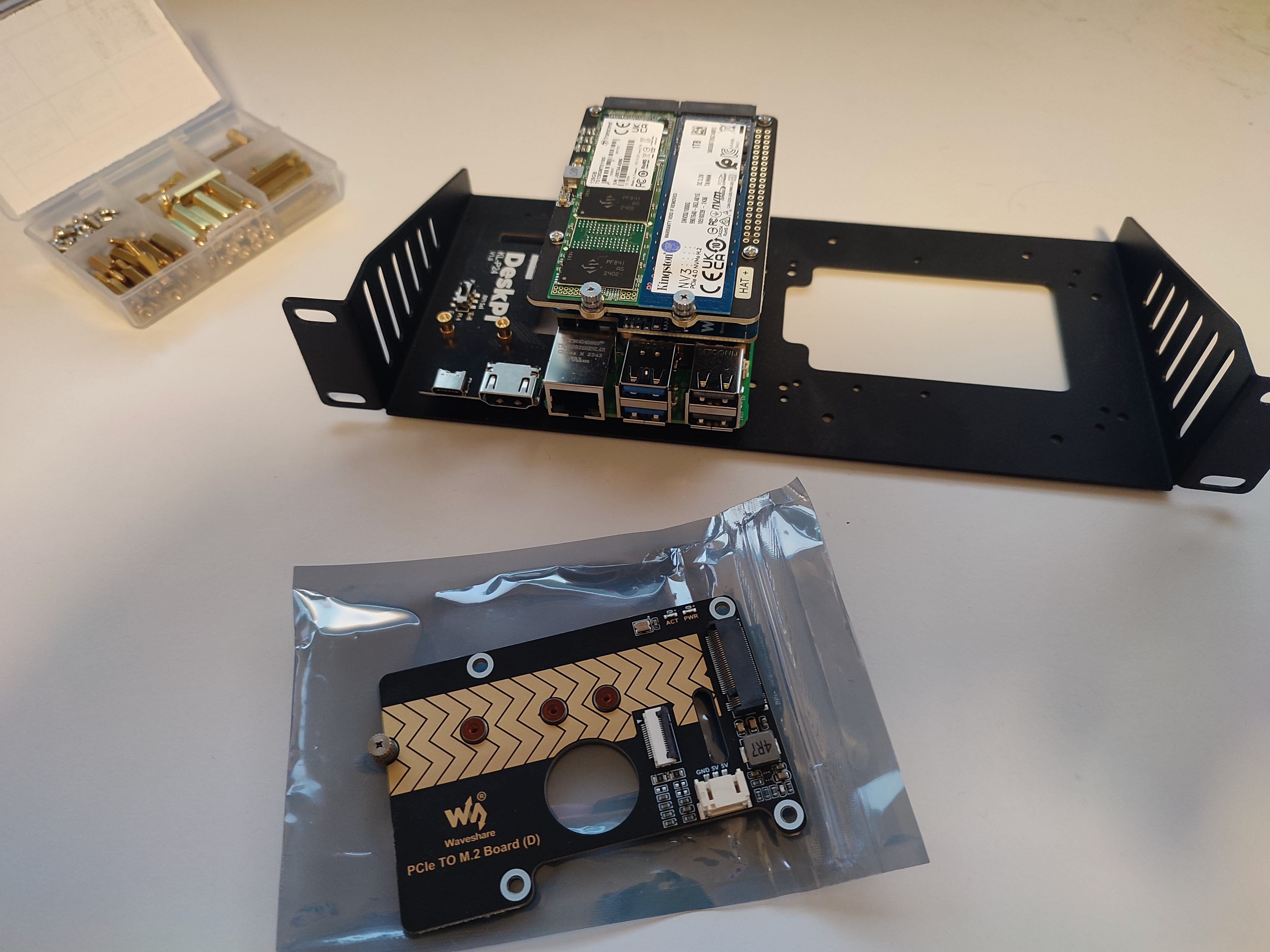

I removed the existing NVME HATs from all devices and installed the new one with now two NVMe SSDs.

Re-installing the Ceph Cluster

Installing the Operating System

With the Raspberry Pi Imager I flashed the Ubuntu server v24.04 to the three NVMe SSDs. I used a NVMe adapter from LogiLink to do that.

Installing Ceph

I will not go too much into the details for the Ceph cluster installation itself as I already was covering this in my earlier article about the initial installation. So let's assume we already installed the Ceph cluster using cephadm and we would like to add the old devices for this cluster.

Enter a shell using cephadm and check the old devices' status:

$ cephadm shell
$ ceph orch device ls --wide --refresh
HOST   PATH          TYPE  TRANSPORT  RPM  DEVICE ID                              SIZE  HEALTH  IDENT  FAULT  AVAILABLE  REFRESHED  REJECT REASONS
ceph1  /dev/nvme0n1  ssd                   KINGSTON_SNV3S1000G_50026B73831D5E2F   931G          N/A    N/A    No         6m ago     Has a FileSystem, Insufficient space (<10 extents) on vgs, LVM detected
ceph2  /dev/nvme0n1  ssd                   KINGSTON_SNV3S1000G_50026B7785C1AC00   931G          N/A    N/A    No         6m ago     Has a FileSystem, Insufficient space (<10 extents) on vgs, LVM detected
ceph3  /dev/nvme0n1  ssd                   KINGSTON_SNV3S1000G_50026B7785C1ABFC   931G          N/A    N/A    No         6m ago     Has a FileSystem, Insufficient space (<10 extents) on vgs, LVM detected

The old clutter is still on the devices. So we need to zap the SSDs on all hosts:

$ ceph orch device zap ceph1 /dev/nvme0n1 --force
zap successful for /dev/nvme0n1 on ceph1
$ ceph orch device zap ceph2 /dev/nvme0n1 --force
zap successful for /dev/nvme0n1 on ceph2
$ ceph orch device zap ceph3 /dev/nvme0n1 --force
zap successful for /dev/nvme0n1 on ceph3
$ ceph orch device ls --wide --refresh
HOST   PATH          TYPE  TRANSPORT  RPM  DEVICE ID                              SIZE  HEALTH  IDENT  FAULT  AVAILABLE  REFRESHED  REJECT REASONS
ceph1  /dev/nvme0n1  ssd                   KINGSTON_SNV3S1000G_50026B73831D5E2F   931G          N/A    N/A    Yes        3m ago
ceph2  /dev/nvme0n1  ssd                   KINGSTON_SNV3S1000G_50026B7785C1AC00   931G          N/A    N/A    Yes        3m ago
ceph3  /dev/nvme0n1  ssd                   KINGSTON_SNV3S1000G_50026B7785C1ABFC   931G          N/A    N/A    Yes        3m ago

Add all SSDs as storage devices to the Ceph cluster:

$ ceph orch apply osd --all-available-devices
Scheduled osd.all-available-devices update...

After a while, I checked my Ceph dashboard: all devices were added. The cluster was healthy and operational again. In my Kubernetes cluster, I just had to update the Ceph CSI driver configuration with the new Ceph cluster information:

IP addresses of Ceph monitors
Cluster ID
secrets

Then everything was operational again.

Observations

The main bottleneck of my setup is the networking. A Raspberry Pi 5 just has a Gigabit network adapter. So throughput is limited to just ~100MB per second. With jumbo frames, you can tease out more throughput. But this has undesirable side effects in this setup in conjunction with Kubernetes. This is ok for some lab environment you run at home. But this is absolutely not sufficient for more serious appliances. I guess I do not need to tell you that using Raspberry Pis for a Ceph cluster is not a good idea for any serious appliance at all. 😀
